Outdoor Hydrotherapy Swim Spa Guide: Choosing, Understanding, and Installing a Year-Round Aquatic Re

An outdoor hydrotherapy swim spa resolves a familiar conflict between swimming for fitness and soaking for recovery. Many homeowners find that a full-size backyard pool goes unused for much of the year, while a compact hot tub leaves little room for a proper stroke. An outdoor hydrotherapy swim spa for backyard fitness and muscle recovery combines a swim lane with contoured massage seating. Think of it as a personal aquatic treadmill sitting beside a recovery room. This guide covers the design principles, materials, structural loads, and installation steps that matter when choosing one.## Why Homeowners Replace Traditional Pools with an Outdoor Hydrotherapy Swim Spa

The Spatial and Thermal Dilemma of Backyard Lap Pools

A conventional lap pool behaves like an open radiator in your yard. Its large surface exposes a big volume of water to wind and cold air, so heating it through the cooler months can become expensive. Many owners respond by covering the pool for winter and giving up on swimming until spring.Space is the second constraint. Urban villas, sloped courtyards, and elevated terraces rarely have room for a long in-ground basin. Excavation can run into setback rules, tree roots, or retaining wall costs. A self-contained vessel about 5.8 meters long avoids most of that digging while still leaving a continuous lane for swimming in place.### Bridging Resistance Training and Post-Workout Recovery
Training and recovery tend to favor different water temperatures. Many swimmers prefer cooler water for sustained exercise, while tired shoulders and a stiff lower back usually feel better in warmer water with focused jet pressure. In a standard pool, a swimmer finishes the workout on a cold deck with no targeted massage at all.A hybrid vessel shortens that gap, with one caveat. A single-zone spa holds one shared body of water, so you choose one set temperature that suits both activities. That usually means a compromise: slightly warmer than ideal for hard swimming, slightly cooler than ideal for a long soak. Even so, the contoured seats and massage jets are only a few steps from the swim lane, and that convenience is often what turns an occasional swimmer into a regular one.### Comparing Aquatic Installations Across Key Ownership Metrics
Comparing an outdoor hydrotherapy swim spa with other backyard water features clarifies the trade-offs. The pool and hot tub columns below are general ranges, and the swim spa column reflects the ZR7809 specifications.| Ownership Metric | Traditional In-Ground Lap Pool | Standard Outdoor Hot Tub | Outdoor Hydrotherapy Swim Spa (ZR7809) |
| :— | :— | :— | :— |
| Typical Footprint | Often 8 m or longer | Roughly 2 m × 2 m | 5.80 m × 2.28 m × 1.40 m |
| Primary Exercise Capability | Lap swimming with turns | Stationary stretching only | Swim current system described in the product data |
| Hydrotherapy Seating | None, usually steps and walls | Several contoured seats | 3 seats with 4 headrests |
| Water and Hull Weight | Typically far heavier | Considerably lighter | 7,800 kg filled, 1,680 kg dry |
| Heat Retention | Depends on cover and climate | Depends on insulation and cover | Multi-layer insulation, stated to reduce heat loss by 30% |
| Site Preparation | Full excavation and plumbing | Level pad or reinforced deck | Level, reinforced foundation with crane or lift access |

How Counter-Current Propulsion and Hydro-Massage Work Together

Hydraulic Propulsion: Powering the Swim Current

Buyers often compare pump horsepower and assume more is better. Power only helps if the flow is controlled. A strong jet with poor water return creates surface chop that pushes the swimmer around. Picture a firehose aimed into a bathtub: the water rebounds off the far wall and unsettles your posture.According to the product description, the Outdoor Hydrotherapy Swim Spa ZR7809 features a powerful current system designed for swimming training. The listed hardware includes three 3 HP (LP300) jet pumps and six suction fittings. We do not have model-specific flow rate or current speed data to share, so ask the supplier for those figures if swim intensity is a deciding factor. The shell itself measures 5,800 mm × 2,280 mm.

Ergonomic Jet Mapping for Targeted Hydrotherapy

Once the swim ends, comfort depends on where the jets sit as much as how many there are. A flat bench with identical nozzles tends to feel like a light tickle, which is why seat shape and jet placement deserve a close look when you compare models.The ZR7809 offers 38 jets across three seats and four headrests, plus two air valves. The product description presents the jets as ergonomically arranged for muscle relief, though it does not specify which muscle groups each seat addresses. Air valves let users adjust the character of the jet stream, typically from firmer to softer. Try the seats in person or ask the supplier for a layout diagram to judge fit for your body.

Independent Circulation and UV Sanitization

Several thousand liters of outdoor water need steady filtration and sanitizing. If the large jet pumps had to run every filtration cycle, energy use and wear would climb. A sensible design separates exercise hardware from daily water maintenance.The ZR7809 includes a dedicated 1 HP (WTC50) circulation pump that moves water through filtration and the 3 kW heater. An integrated UV sterilizer adds a supplemental treatment step. UV does not replace routine disinfection. Owners still need to test and maintain the sanitizer residual and pH levels specified by the manufacturer and by applicable local guidance, since health agencies such as the CDC call for maintaining a chlorine or bromine residual in hot tubs.## Materials and Structural Engineering for Harsh Outdoor Environments

Multi-Layer Shell Construction and US Aristech Acrylic

An outdoor shell lives through summer sun, cold nights, and constant temperature swings. Weak surfaces can fade, blister, or separate over time. The surface material and the layers beneath it both matter.The ZR7809 shell starts with a US Aristech Acrylic surface. Beneath it, the product’s construction diagram shows layers of epoxy resin, resin with fiberglass, and a base foam insulation layer. This stack gives the shell its strength and its smooth interior finish. It also supports the 1,400 mm tall walls, which hold roughly six metric tons of water.

Thermal Retention and Multi-Layer Insulation

Heat leaves an outdoor spa through the water surface, the shell walls, and the ground. If the underside of the shell is poorly insulated, the earth acts as a heat sink. Every degree lost overnight has to be paid for again the next morning.According to the ZR7809 product documentation, its multi-layer insulation reduces heat loss by 30%, which lowers operating energy costs. The design pairs base foam insulation with a New PS skirt and a fiberglass base. Real-world savings will vary with climate, water temperature, and cover use, so treat the figure as the manufacturer’s claim rather than a guarantee.### Load-Bearing Frames and Control Architecture
A fully filled ZR7809 weighs 7,800 kg, so the frame has to be both strong and resistant to moisture. Timber can absorb water and warp, which lets a heavy shell settle unevenly. A galvanized steel support frame offers corrosion resistance and a dependable path for carrying the load down to the fiberglass base.The mechanical side is managed by a Balboa BP6013 G3 control system with a TP600 topside panel and a 3 kW heater. The system provides a user-friendly interface for temperature and equipment control. The unit also includes one underwater light for evening use.## Specifications and Setting: Inside the Outdoor Hydrotherapy Swim Spa ZR7809

Complete Technical Specifications and Hydraulic Configuration

Architectural Integration in Courtyards, Villas, and Terraces

A 5.8-meter vessel becomes a visual anchor in any garden. Its cabinet finish and interior color should suit the surrounding stone, decking, and planting. Because it does not need a full in-ground excavation, the unit can sit on a prepared patio or be partly recessed into a deck, subject to a contractor’s advice on access and drainage.

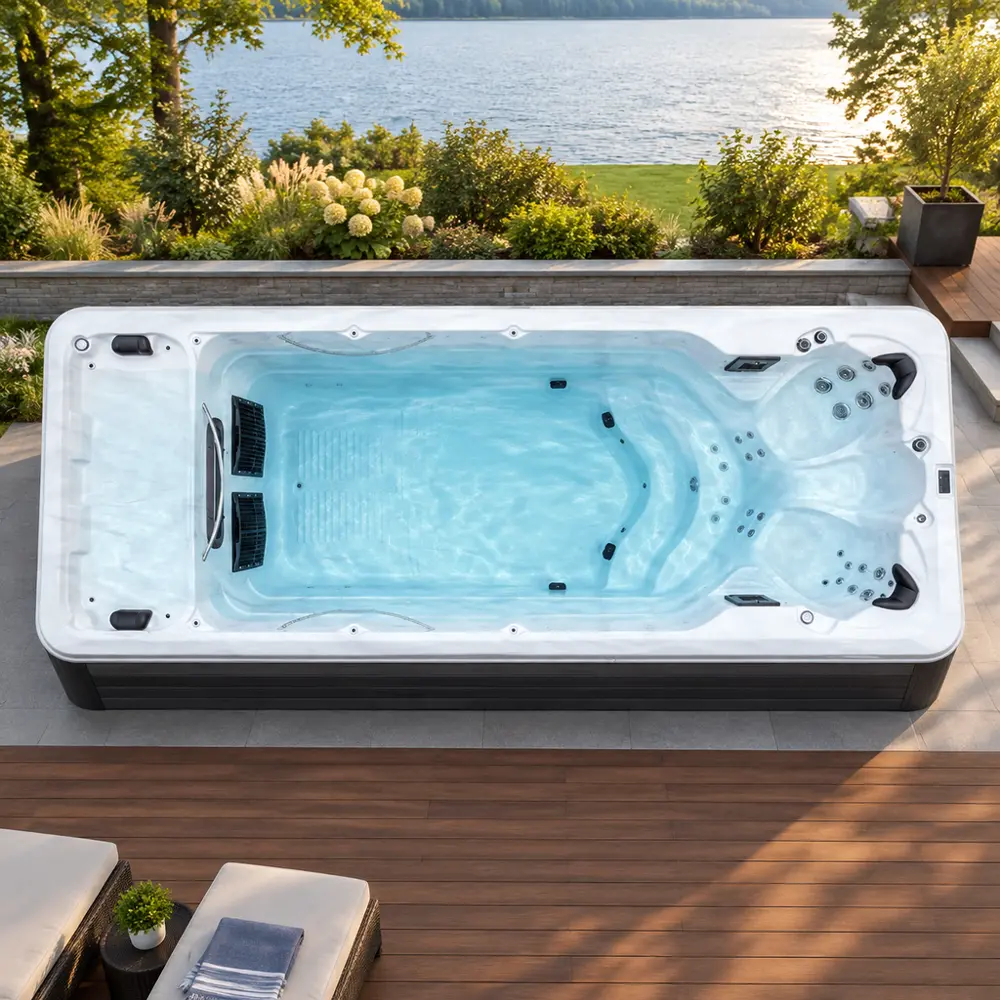

Inside the shell, the seating area sits at one end and the swim lane stays open for the rest of the length. Stainless steel grab handles near the intake grates give swimmers something to hold for kick drills. After the workout, the contoured seats are a short move away, and the underwater light makes evening sessions easier.

Step-by-Step Selection and Site Preparation Guide for Buyers

Evaluating Structural Load and Foundation Engineering

Before ordering an outdoor hydrotherapy swim spa, respect the physics of concentrated weight. The supplied filled weight of 7,800 kg already includes the water. Spread over a footprint of about 13.2 square meters, it works out to roughly 590 kg per square meter. That figure is before occupants and any other design considerations a structural professional may apply. Gravel, loose sand, or an unreinforced wooden deck is a poor base for that load.Avoid using shims to level a vessel on a sloped surface, since point loading can stress the frame and base. Review these foundation points with a qualified local professional before delivery:

• Reinforced concrete slab: A level, steel-reinforced slab over a compacted sub-base is the common approach. Confirm the thickness and reinforcement with your contractor and the manufacturer.* Elevated terrace certification: On a rooftop or balcony, have a licensed structural engineer assess the actual installation load, including occupants, and confirm that the structure can carry it.* Surface drainage: Slope the surrounding patio away from the spa so rainwater does not pool near the equipment area, while keeping the mounting pad itself level.* Recessed installations: If the spa will sit below grade, plan drainage and ventilation for the pit and leave room for technician access around the skirt.### Electrical Planning, Delivery Rigging, and Access Clearance Moving a 1,680 kg hull into a walled yard takes coordination between your electrician, a crane or lift operator, and the supplier. This sequence helps prevent delays on delivery day:

1. Confirm the electrical configuration: The supplier lists 220 V, 380 V, and 110 V options, but the installed configuration must be confirmed for the specific unit you order. Ask the supplier for the control-pack wiring diagram, voltage, phase, and current requirements, and have a qualified electrician verify them against your panel. The electrician should also install the ground-fault protection (such as GFCI/RCD) and wiring that your local code requires, including the NEC in the United States. An ordinary breaker alone is not enough shock protection around a spa.2. Measure the lift path: Record the distance from the street to the pad and note overhead lines, roof eaves, and tree canopies so the lifting company can choose suitable equipment.3. Keep the equipment side accessible: Orient the spa so the control system, heater, and pumps face a clear walkway for future service, and ask the supplier for the minimum clearance.4. Plan the drainage route: Decide where water from the single drainage outlet will go, so water changes do not flood garden beds or neighboring property.5. Follow the manufacturer’s startup procedure: Fill, prime, and commission the system as the installation manual describes, since air trapped in the pumps can interrupt flow at first startup.## Frequently Asked Questions About Outdoor Hydrotherapy Swim Spas

Can an outdoor hydrotherapy swim spa operate efficiently in freezing winter climates?The supplied ZR7809 specifications do not confirm freezing-climate performance or state cold-weather operating limits. The documentation does state that its multi-layer insulation reduces heat loss by 30%, but insulation alone does not establish winter suitability. Freeze protection on a Balboa control system depends on the installed configuration and on continued power supply. Before you buy, ask the manufacturer for the operating limits, freeze-protection details, and winterization instructions that apply to the exact configuration you plan to order.### How much space and foundation do I need for a 5.8-meter swim spa?The ZR7809 measures 5,800 mm × 2,280 mm × 1,400 mm, so the pad must be level and larger than the footprint, with room to reach the equipment side. A reinforced concrete slab is the usual choice for ground installations. Your contractor and the manufacturer’s installation guide should confirm the exact thickness and dimensions.### What is the difference between single-zone and dual-temperature swim spas?A single-zone unit like the ZR7809 keeps the swim lane and the massage seats in one continuous body of water, which maximizes the swimming length within a 5.8-meter footprint. The trade-off is one shared water temperature. A dual-temperature model divides the shell into two separate water bodies. That allows different temperatures but generally shortens the swim channel unless the vessel is longer.### How often does the water need to be drained and replaced?There is no single schedule. Drain intervals depend on usage, water quality, filtration, and local conditions. A swim spa holds far more water than a compact hot tub, and the ZR7809 includes a dedicated circulation pump and a UV sterilizer to support water quality. Follow the manufacturer’s maintenance guidance, keep the sanitizer residual and pH in range, and test the water regularly.## Conclusion: Building a Sustainable Personal Wellness Sanctuary

An outdoor hydrotherapy swim spa can turn an underused patio or villa courtyard into a place for training and recovery. Instead of choosing between lap swimming and a jetted soak, a well-specified system offers both in one footprint, with a shared water temperature you set to suit your routine. With a galvanized steel frame, US Aristech Acrylic, three 3 HP jet pumps, and a properly prepared foundation, a home outdoor hydrotherapy swim spa for fitness and recovery can serve daily aquatic exercise and relaxation for years.
